WCT CDLF+CDH/High Pressure Pump for Waste Water Treatment

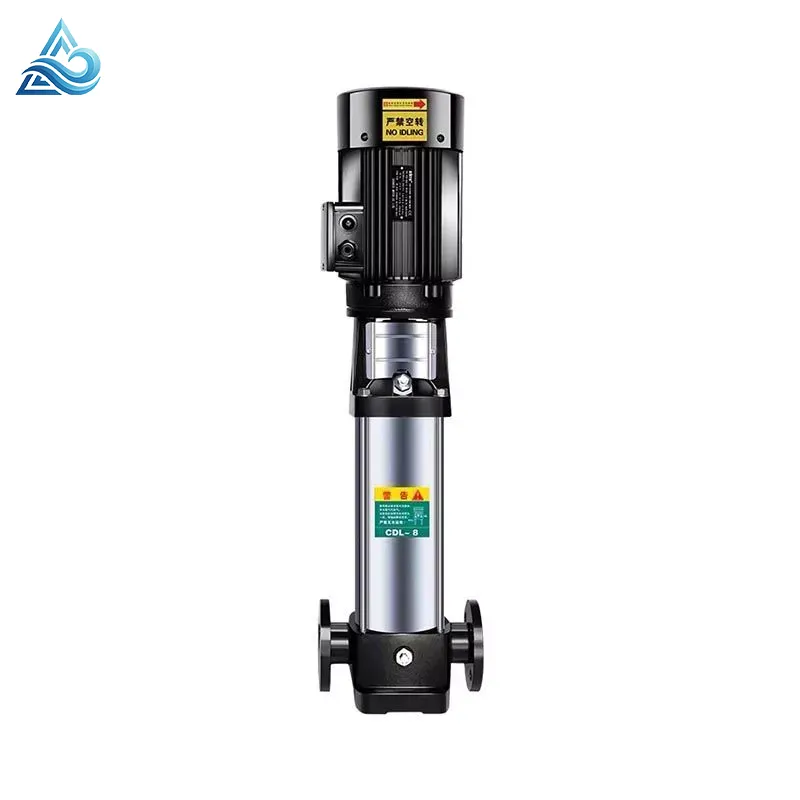

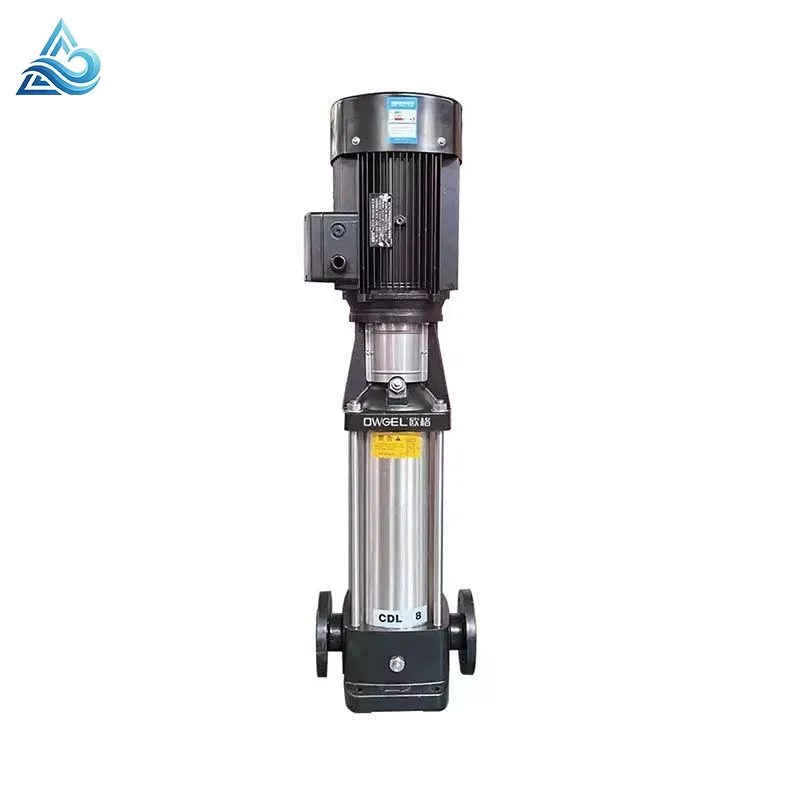

● The CDLF+CDH vertical high-pressure pump consists of two vertical multi-stage centrifugal pumps connected in series to form a dual-pump system to generate high pressure.

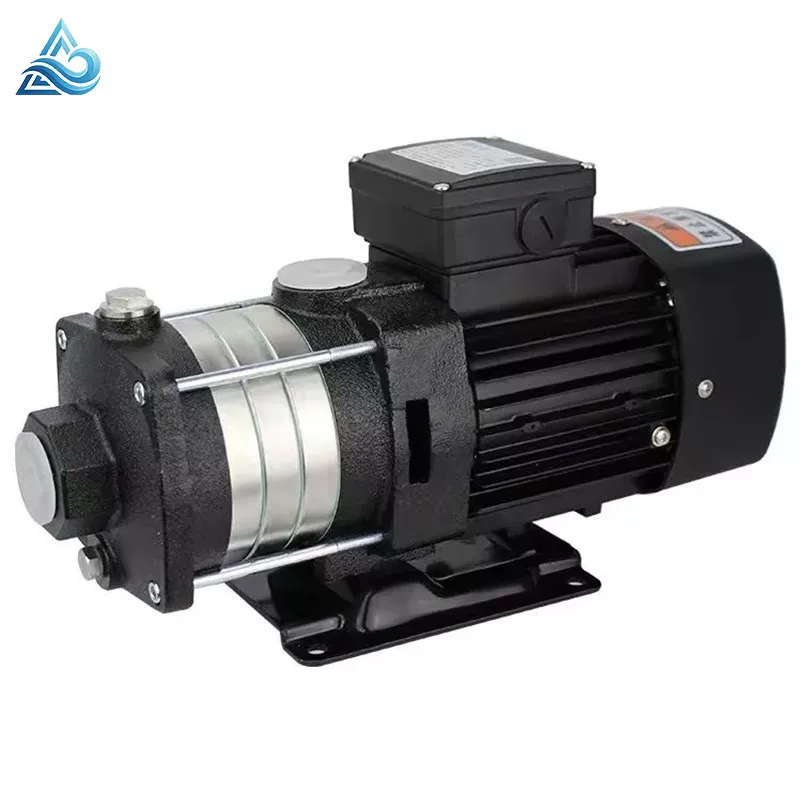

● The HP horizontal high-pressure pump is available in two forms: single unit and two units connected in series.
● The impellers are installed back-to-back to balance the huge axial force.
Get A Quote

Product Description

Model Instruction

Product Parameter

Technical Parameters ●Flow range: 0.4m³/h～65m³/h
●Lift range: 110m～718m
●Ambient temperature: -15℃～+120℃
motor ●Fully enclosed, air-cooled two-pole standard motor
●Protection level: IP55
●Insulation grade: F
●Voltage: 50Hz:3x380V-415V
3×220-240/380-415V
3×200-220/346-380V
1×220-230/240V
Operating conditions ●A thin, clean, non-flammable and non-explosive liquid that does not contain solid particles or fibers
●Liquid temperature: normal temperature type -15°C to +70°C
Hot water type -15°C to +120°C
●Ambient temperature: higher +40°C
●The altitude is 1000m higher
Link ●Inlet and outlet connection: using card sleeve type quick installation connection
Features ●High lift
●Adopts standard electric motor
●Simple structure, good reliability, high efficiency and energy saving, light and beautiful appearance
●Adopts integral, easily detachable mechanical seal for easy maintenance
application ●Water treatment ultrafiltration system
Material ●Reverse osmosis system
●Supercharging system
●High pressure washing system
●Water supply
●Stainless steel

Product Features

Medium temperature: normal type:0℃~68℃ hot water type:0℃~120℃

1. Ambient temperature:+40℃，

2. Max ambient pressure:1.0MPa

3. Advisable to use motor of higher power in case that the density or viscosity of medium is above that of water

4. PH: 5 to 8
