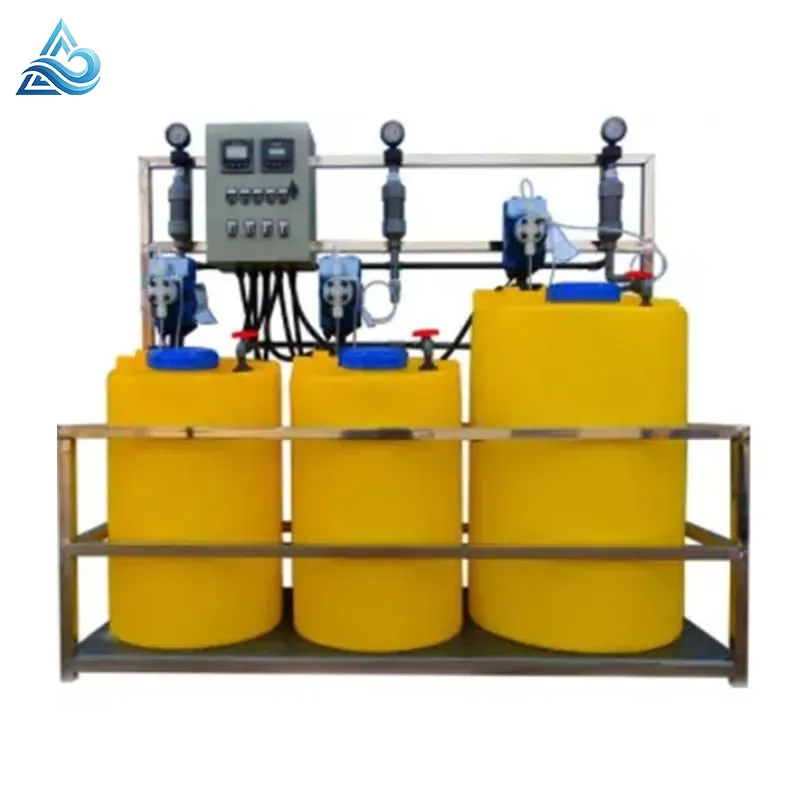

WCT Chemical Dosing System for Water Treatment

● The chemical dosing device is a complete set of equipment that integrates dosing, stirring, liquid transportation, and automatic control.

● The chemical dosing units is configured in the mixing box according to the required concentration of the agent. After being stirred evenly by the agitator, it is put into the solution box and a metering pump is used to transport the prepared solution to the dosing point or designated system.
● The volume of the solution tank in the dosing unit can be selected according to the amount of dosing, and the materials include PE, PVC, PP, and PTFE.

Product Description

Product Parameter

modelVolume(m³)Flow( L/H)Pressure  (Mpa)Power(KW)Outlet diameter(mm)Dimensions(L*B*Hmm)Dosing methodMaterial of medicine dissolving boxPump
SD-0.250.25161.0-2.60.55DN151500*700*1300Manual/automaticPE/PVC/PP/PTFEdiaphragm dosing pump
SD-0.50.5320.55DN201600*1000*1500
SD-1.01480.55DN152000*1200*2000
SD-1.51.51250.55DN252200*1600*2100
SD-2.023101.10DN252200*1600*2200
