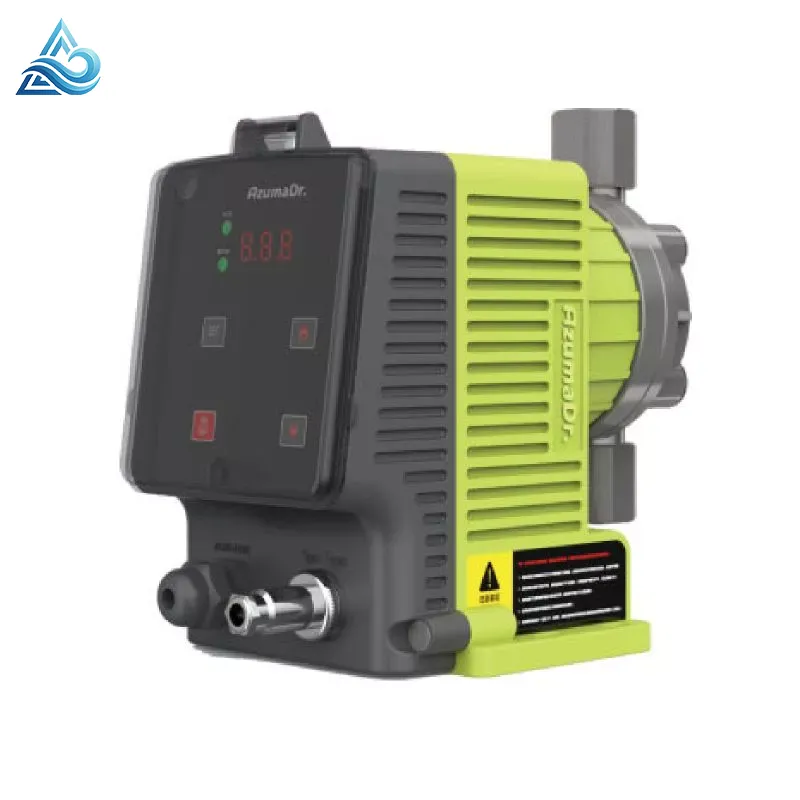

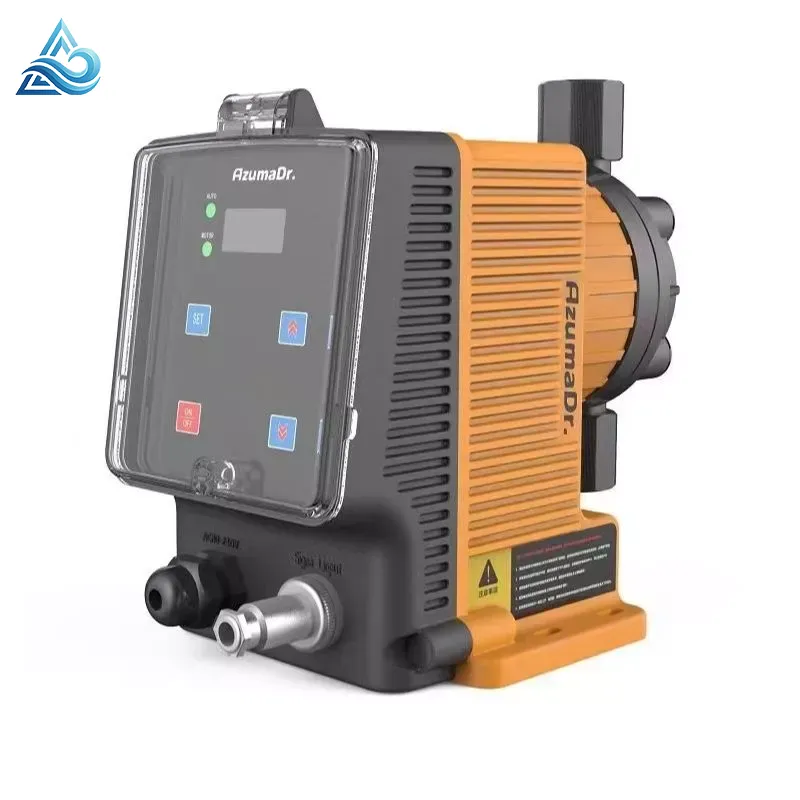

e AS/AE series products are economical, accurate and efficient in performance.

Automatic input voltage identification function, voltage can be used in 100-240V AC, almost applicable to all national power supply.

AS/AE series compact structure, simple operation, maximum flow rate up to 30L/H, maximum pressure 1.5MPa.

High efficiency performance

The e AS/AE series is capable of up to 400 strokes per minute, providing efficient and highly accurate fluid delivery.

Can manually adjust the output halo, also can be connected to the external pulse signal or 4-20mA signal to adjust the flow, with RS485 communication interface. Generally running the pump at low speed is easy to cause problems such as unsmooth dosing, acceleration diaphragm wear and difficult dosing control.

High level of protection

· Rugged housing protects against daily wear and tear.

The shell is designed to be waterproof, while the electronic components are covered with resin, moisture-proof and waterproof. Transparent protective cover to further prevent the pump from being splashed by liquid, protection level up to IP65.

Strong compatibility

· Pump heads of various materials can adapt to different corrosion resistance requirements.

The PVDF pump head and ceramic ball valve are the high performance configuration of the pump.

PVDF pump heads are compatible with almost all chemicals used in industrial, water treatment and other fields.

The use of ceramic ball valves improves the reliability of administration and the chemical compatibility of the entire contact end.

Reliable performance

. Advanced design concept and manufacturing process, patented technology to create the diaphragm’s long service life, the service life of the diaphragm is more than 5 years, so that the maintenance cost of the product is greatly reduced.

The diaphragm is made of pure PTFE material and is compatible with most chemicals.

Simple moving parts, no lubrication, no transmission and deceleration parts, high reliability. Import and export adopt double valve structure, high measuring precision, long life.

Easy to install, with the bottom valve, injection valve and import and export hose.

AS series electromagnetic diaphragm house pump selection parameters
