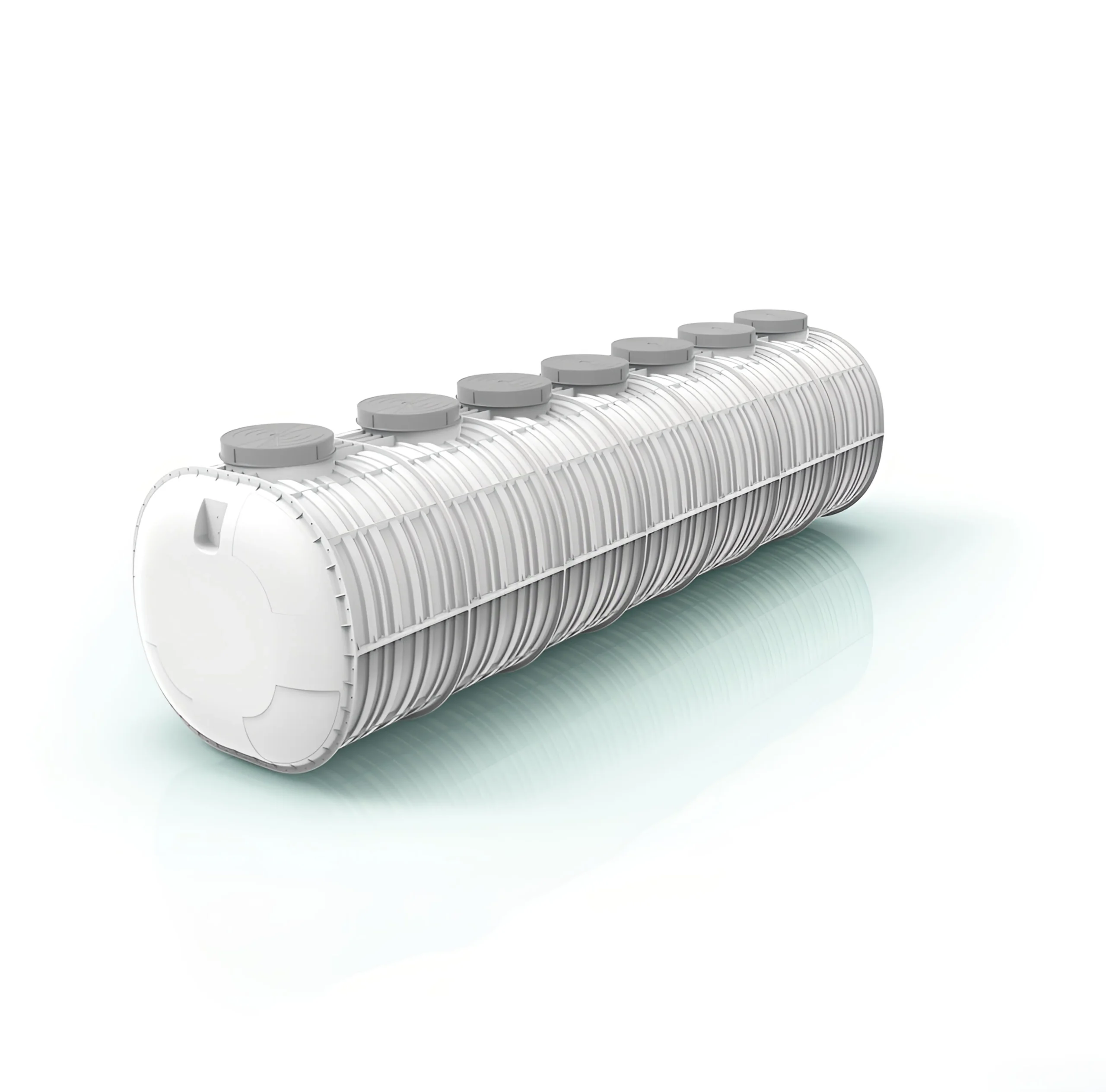

Complete Technical Specifications for the 20 Ton 5280 Gallon Underground Septic Tank for Large Communities

When engineering commercial wastewater management infrastructure, relying on precise data is non-negotiable. We designed our heavy-duty 5280 gal septic holding tank to deliver uncompromising performance for large scale community septic systems, industrial parks, and municipal projects. Built with a rotomolded one-piece construction, this 20 cubic meter underground wastewater tank ensures zero leakage and rapid deployment.

Below are the exact engineering specifications for our high-density polyethylene bulk waste tank:

Key Engineering Highlights:

• Optimized Freight & Handling: With an empty weight of just 400–450 kg, this 20 ton capacity holding tank drastically reduces heavy crane requirements and lowers your commercial septic tank freight quote.
• Structural Integrity: The reinforced rib underground holding tank design supports a 35kN/m² load capacity, making it safe for installation beneath public pedestrian areas and zones with light vehicle traffic.
• Customizable Integration: As a dedicated B2B water treatment equipment manufacturer, we provide customizable DN250/DN300 inlet and outlet configurations to seamlessly connect with your existing domestic sewage-integrated equipment.

Advanced 6-Chamber Biological Treatment Design

When managing waste for a township, resort, or industrial park, a basic holding tank isn’t enough. Our 20 Ton 5280 Gallon Underground Septic Tank for Large Communities features a highly efficient 6-chamber biological design that actively processes waste rather than just storing it.

How the Multi-Chamber System Works

As a dedicated B2B water treatment equipment manufacturer, we engineered this multi-chamber HDPE septic tank to process heavy daily volumes automatically. The wastewater flows continuously through four specialized biological zones:

• Phase 1: Sedimentation Zone. Heavy solids settle to the bottom upon entry, instantly separating raw sludge from the liquid effluent.
• Phase 2: Multi-Stage Anaerobic Fermentation. The liquid moves through successive chambers where natural anaerobic bacteria actively break down organic matter without the need for oxygen.
• Phase 3: Aerobic Treatment. This zone tackles the remaining pollutants, accelerating the biological breakdown of the wastewater.
• Phase 4: Clarification Zone. The final settling stage ensures only highly treated, clear water exits the 20 cubic meter underground wastewater tank.

This robust commercial wastewater management infrastructure significantly reduces the pollutant load before discharge. Because of this high efficiency, it serves as an excellent foundational component for larger municipal water treatment systems. To keep upkeep simple, each of the six internal chambers aligns with its own dedicated manhole, allowing your team to perform routine maintenance and desludging quickly and easily.

Key Advantages of WCT’s High-Density Polyethylene (HDPE) Tanks

When deploying a 20 Ton 5280 Gallon Underground Septic Tank for Large Communities, the material you choose makes all the difference. As a trusted B2B water treatment equipment manufacturer, we engineered our tanks to withstand the toughest subterranean environments. Traditional concrete cracks and degrades over time, but our high-density polyethylene bulk waste tank offers a permanent, leak-proof alternative for commercial wastewater management infrastructure and modern plants for water treatment.

What Makes Our Polyethylene Tanks Superior?

• Rotomolded One-Piece Construction: We manufacture each rotomolded one-piece municipal septic tank without any seams. Zero seams mean zero weak points, completely eliminating the risk of leaks and groundwater contamination.
• Maximum Structural Integrity: The reinforced rib underground holding tank design easily handles intense heavy soil pressure. With a 35kN/m² load capacity, it performs reliably as a light traffic rated underground septic tank beneath public pedestrian zones and paved driveways.
• 50+ Year Lifespan: Built from premium HDPE and modified Polypropylene (PP), this 20 ton capacity holding tank is entirely UV-resistant, rot-proof, and immune to harsh subterranean acids or alkalis.
• Cost-Effective Logistics: Despite functioning as a heavy-duty 5000 gallon commercial septic tank, the empty unit weighs only 400–450 kg. This lightweight profile requires less heavy lifting equipment on-site and significantly lowers your commercial septic tank freight quote.

Ideal Applications for High-Capacity Septic Systems

When you need to process massive volumes of daily wastewater safely and efficiently, standard residential setups simply won’t work. We designed our 20 Ton 5280 Gallon Underground Septic Tank for Large Communities to be the heavy-duty workhorse for demanding off-grid and high-traffic locations.

Because of its massive size and durable multi-chamber design, this unit serves as the perfect foundation for robust commercial wastewater management infrastructure.

Here is where our high-capacity tanks perform best:

• Townships and Off-Grid Developments: Serves as a highly reliable backbone for large scale community septic systems and decentralized municipal water treatment projects.
• Industrial Parks & Manufacturing Hubs: Functions seamlessly as an industrial underground sewage tank, providing safe, long-term industrial wastewater storage.
• Large Resort Complexes & Hotels: Keeps hospitality operations running smoothly. Our high-capacity 5000 gallon commercial septic tank handles peak seasonal usage without skipping a beat.
• Commercial Buildings & Corporate Campuses: Provides a dependable, light traffic rated underground septic tank solution that safely hides under public pedestrian areas and parking zones.
• Public Sanitation Facilities: The ultimate 20 cubic meter underground wastewater tank for high-use public parks, highway rest areas, and community sanitation upgrades.

Installation Guidelines & Burial Requirements for 20 Ton Underground Tanks

Site Prep and Burial Depth

When installing our 20 ton capacity holding tank, getting the ground prep right is the most critical step to guarantee its 50+ year lifespan. Whether you are setting up large scale community septic systems or a commercial setup, precise excavation ensures the structural integrity of this high-density polyethylene bulk waste tank.

Because these units frequently serve as the primary collection point before routing to larger municipal water treatment systems, adhering strictly to our burial specifications is non-negotiable.

Core Installation Steps

• Excavation & Base Preparation: Dig the trench with sufficient clearance on all sides of the heavy-duty 5280 gal septic holding tank. You must lay a perfectly leveled, compacted sand or concrete pad to prevent uneven settling.
• Burial Depth Constraints: The approved burial depth for this 20 cubic meter underground wastewater tank is strictly between 0.4 meters and 1.5 meters. Exceeding this depth compromises the reinforced rib underground holding tank structure.
• Safe Backfilling: Only use clean sand or fine gravel without sharp rocks. Backfill evenly around the perimeter in layers while simultaneously filling the tank chambers with water. This equalizes the pressure and prevents warping.
• Surface Load Ratings: Proper installation yields a load capacity of 35kN/m². This classifies it as a light traffic rated underground septic tank, perfectly suited for public pedestrian zones, green spaces, and light vehicle parking areas over the installation site.

Quick Reference: Burial Specifications

Engineered by WCT Water Treatment

We are a leading B2B water treatment equipment manufacturer dedicated to building reliable commercial wastewater management infrastructure. Every 20 ton capacity holding tank we produce is backed by over 12 years of hands-on industry experience and strict ISO9001 quality standards.

Our manufacturing strength comes from our dedicated team and proven innovation:

• Expert R&D Team: Over 20 engineers designing highly efficient domestic sewage-integrated equipment.
• Patented Technology: 30 secured patents, including 20 core and 10 invention patents driving our system designs.
• Seamless Integration: Our multi-chamber systems easily pair with high-performance aeration components like the WCT disc diffuser to maximize aerobic treatment efficiency.
• Custom Solutions: We provide one-stop, customized manufacturing across multiple facilities to meet your specific municipal or industrial project demands.

When you source a 20 Ton 5280 Gallon Underground Septic Tank for Large Communities from us, you get a heavy-duty system engineered for long-term stability, environmental compliance, and sustainable water management.

Frequently Asked Questions (Commercial Installation)

Here are the most common questions we receive from developers and contractors regarding the installation of our 20 Ton 5280 Gallon Underground Septic Tank for Large Communities:

• Q: Can we install this system under a driveway or community parking lot?
  A: Yes. This unit is an engineered light traffic rated underground septic tank. With a load capacity of 35kN/m², it safely supports public pedestrian zones and light vehicle traffic when backfilled correctly.
• Q: What is the exact burial depth requirement?
  A: The recommended burial depth for this 20 cubic meter underground wastewater tank sits between 0.4 and 1.5 meters. The reinforced rib design ensures it handles the surrounding soil pressure within this range without warping.
• Q: How do you handle shipping for such a large unit?
  A: Because we use rotomolded HDPE, the tank is incredibly durable but relatively light, with an empty weight of just 400–450 kg. You can reach out to our team at any time for an accurate commercial septic tank freight quote straight to your job site.
• Q: How does this compare to a standard municipal setup?
  A: It operates as an independent, localized processing system using its 6-chamber biological treatment process. For developers looking to understand the mechanics of scaling up community infrastructure, understanding how do water treatment plant work can help clarify why this multi-chamber design is so effective for large-scale off-grid applications.
• Q: Is maintenance difficult on a 5000 gallon commercial septic tank?
  A: Not at all. We built the tank with 6 distinct manholes—one positioned directly over each internal chamber. This allows vacuum trucks to easily access specific zones for routine desludging without disrupting the entire system.
